urology percutaneous nephroscope training simulator HFM-8708

a nephroscope training simulator is designed to help urologists and other healthcare professionals practice and refine their skills in percutaneous nephrolithotomy (PCNL), a procedure used to remove kidney stones through a small incision in the skin. These simulators provide a risk-free environment to develop proficiency in the use of a nephroscope, which is essential for performing minimally invasive kidney surgeries.

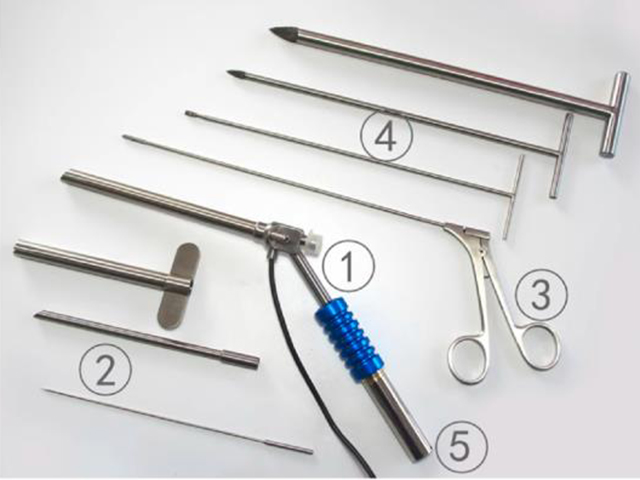

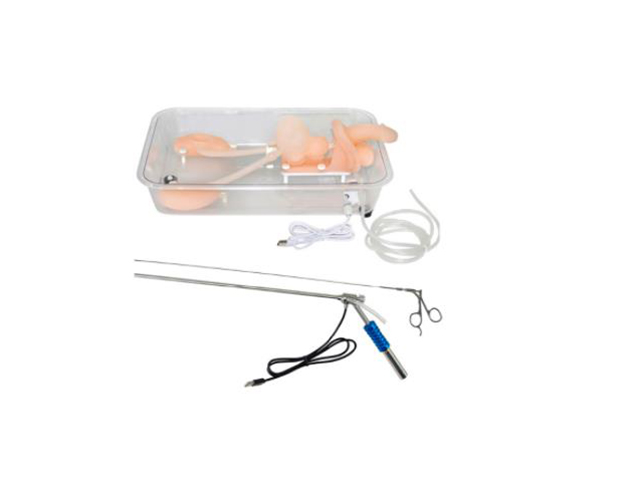

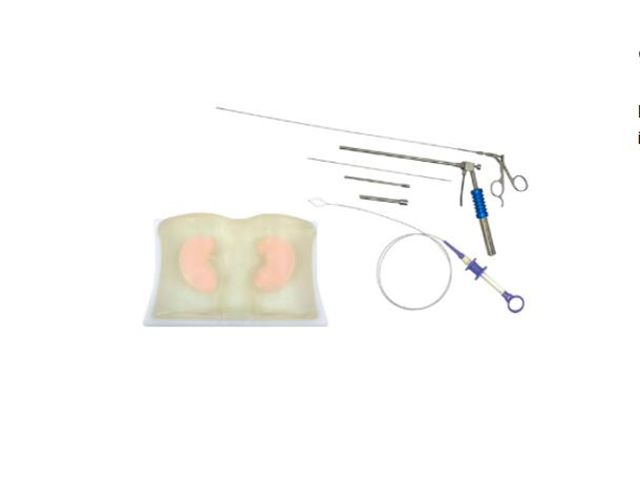

Configuration list

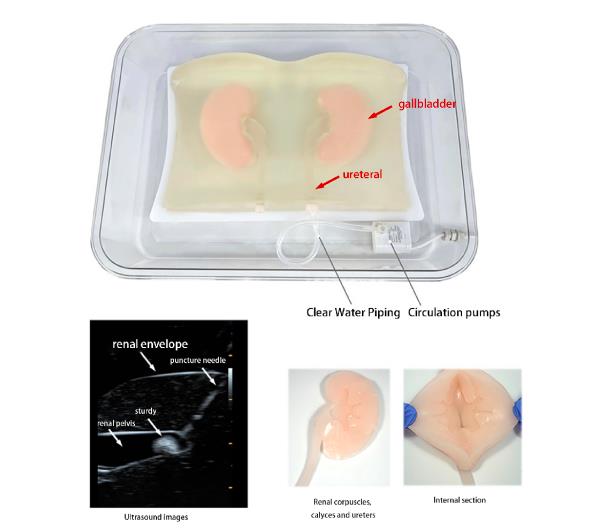

1.Renal puncture modelTransparent back, bilateral kidney ureter, base and circulation pumps

2.Percutaneous nephroscope 1280*720 resolution working length 200mm

3.Dilatation tube  4mm, 6.5mm each 1pc

4.Biopsy forceps  Working length 560mm

5.Stone extraction mesh basketΦ1.6*1000mm, 4 silk spindle head

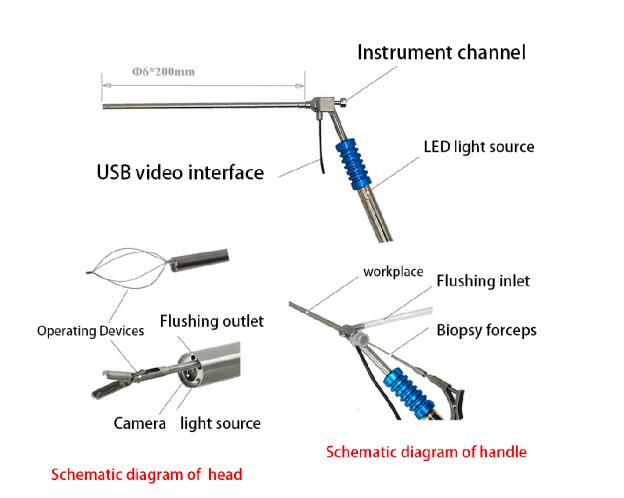

Percutaneous nephroscopy

1. Endoscope size: working part 6*200mm

2.Camera resolution: 1280*720, 25 frames per second

3. Channel diameter : 6Fr

4. Light source type: LED light source, optical fibre independent channel conduction

5. Waterproof degree: working part IPX7

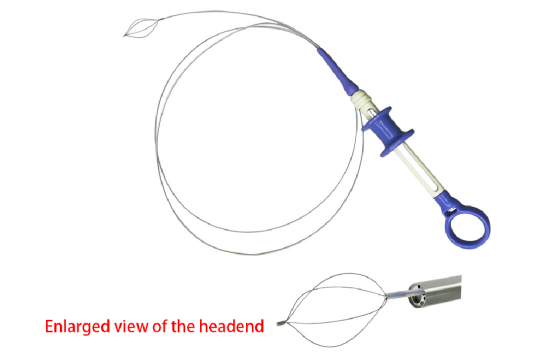

Stone Extraction Basket

Parameters of mesh basket for stone extraction

1、Mesh basket size:Φ1.6*1200mm

2、head specification: 4 silk spindle shape

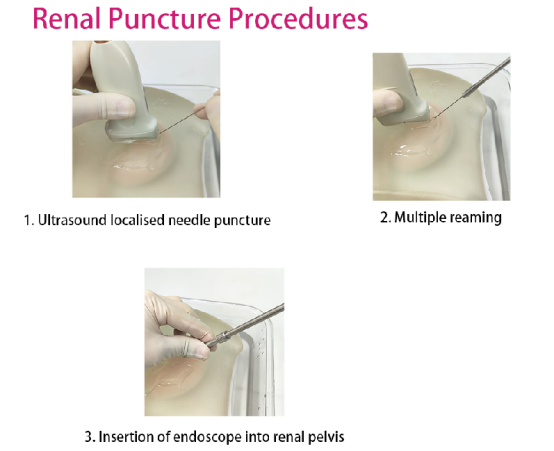

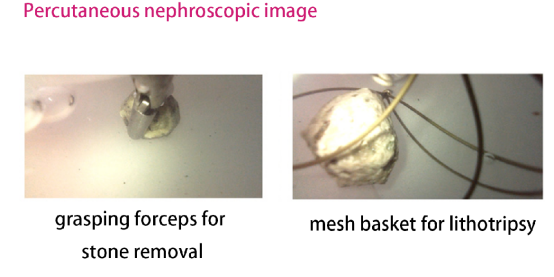

Status of use
